Time Pivot

FDX APIs with the suffix TimePivot enable you to extract multiple time periods and treat Time as a measure. To import multiple time periods as measures, enable the Attribute Value and xBlend Attribute Value dimensions, depending on how many time periods are needed. Once enabled, add them to the data source and map them to the source data fields.

Treating time as a measure improves performance when working with multiple time periods. Using FDX APIs results in flatter in-memory tables. If you pivot Time in a data table containing multiple time periods, the data for each time period is stored in separate columns. For example, the following tables display the same amount of data. One table stores Time as a dimension. The other table has pivoted Time and stores it as a measure. The table where time is stored as a measure is flatter and is faster to process due to fewer rows.

Time as a Dimension

The time periods are in the Time column, and there is a separate Amount column to store the values.

Entity Scenario Time Account Amount
E1 Actual 2025M1 Account Receivable 150
E1 Actual 2025M1 Gross Revenue 150
E1 Actual 2025M1 Cash 50
E1 Actual 2025M2 Account Receivable 250
E1 Actual 2025M2 Gross Revenue 250
E1 Actual 2025M2 Cash 100

Time as a Measure

Time is pivoted so that there are time columns for 2025M1 and 2025M2 to store the amounts.

Entity Scenario Account 2025M1 2025M2
E1 Actual Account Receivable 150 250
E1 Actual Gross Revenue 150 250
E1 Actual Cash 50 100

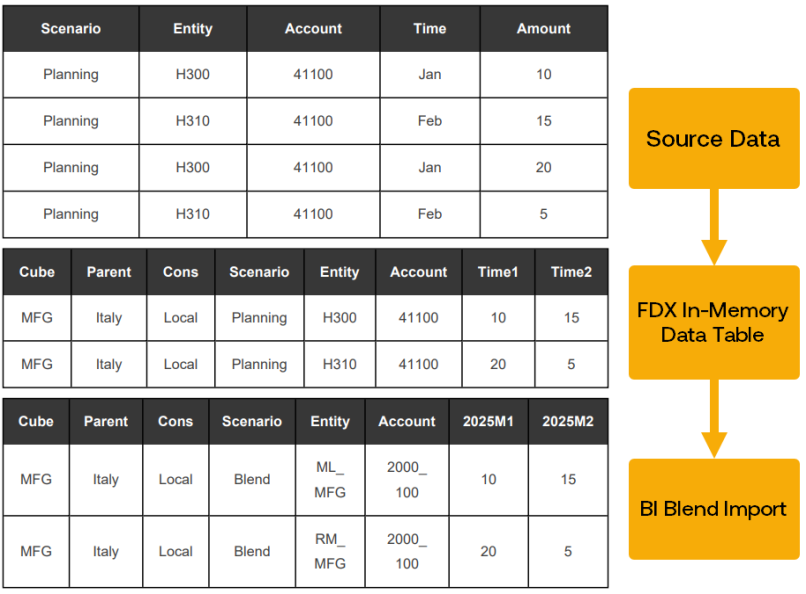

The following image displays time pivot as part of the BI Blend import process. In this example, the warehouse FDX BRApi is used to extract data from the source.

Time pivot as part of the BI Blend import process, Source data to FDX In-Memory data table, to BI Blend import

Source Data

In the source data table, Time is stored as a dimension, not as a measure. The time periods are in the Time column with the distinct time periods in rows. There is a separate Amount column to store the values.

FDX In-Memory Data Table

The FDX Warehouse BRApi extracts the data and stores it in an In-Memory data table. Time is pivoted so that Time is a measure. There are columns to store Jan and Feb amounts: Time1 and Time2. The column headers and members names are still the source member names. They have not been transformed yet.

BI Blend Table

The data is then imported into the BI Blend table where Time is also treated as a measure. The transformation rules are processed so column headers and member names show the target members and names. For example, Time1 is transformed to 2025M1, and Entity member H300 is transformed to ML_MFG. The data is stored against the Scenario dimension member that has been used to import the Blend data.
