Sankey Diagram

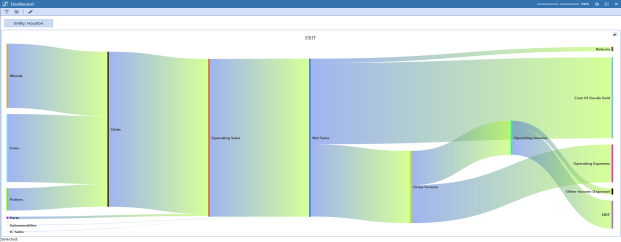

This component can be used with the Windows Application dashboards to display Sankey diagrams. Sankey diagrams enhance the visualization of connected data sources and entities using the method command type business rules or single-row Cube Views with multiple columns.

NOTE: Diagrams can be exported as .png files by right-clicking outside of the links and then selecting PNG.

Create a Sankey Diagram

  1. From the OneStream Application tab, click Workspaces.

  2. Expand your Workspace and then expand the appropriate Workspace Maintenance Unit.

  3. Click the Components label and then click theCreate Dashboard Component button.

  4. In the Create Dashboard Component dialog box, click Sankey Diagram (Windows App Only) and then click theOK button.

  5. In the Name field, type a name for your Sankey diagram.

  6. Click theSave button.

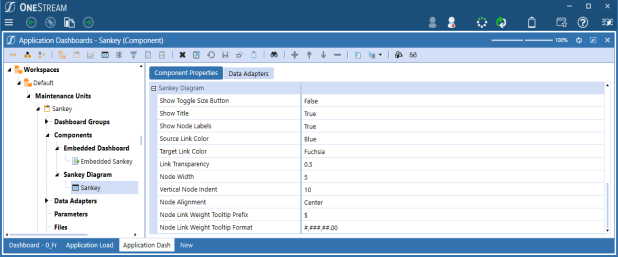

Sankey Diagram Component Properties

Action

See Component Formatting and Action Properties.

Sankey Diagram

Show Toggle Size Button

When True, the toggle size button is available. When False, the toggle size button is unavailable.

Show Title

When True, the title is centered above the diagram. When False, no title is shown in the diagram.

Show Node Labels

When True, node labels display on the diagram. When False, node labels do not display on the diagram.

Source Link Color

When Default, source link colors automatically change with each refresh. Set a custom or preloaded color to maintain the same color.

Target Link Color

When Default, target link colors automatically change with each refresh. Set a custom or preloaded color to maintain the same color.

Link Transparency

Specify the level of transparency displayed on the diagram by selecting a value between 0 and 1. 0 is opaque and 1 is transparent. The default is 0.5.

Node Width

Specify the width of the bar for the node. Increase this number for a wider bar.

Vertical Node Indent

Specify the vertical space between nodes. Increase this number for more white space.

Node Alignment

Specify the vertical alignment to the top, bottom, or center of the diagram.

Node Link Weight Tooltip Prefix

Set the tooltip prefix as any keyboard character (!@#$%^&*()<>?) or alphanumeric text. This lets you input a currency culture like $ or €.

The example below sets prefix as $ if the user is set to English:

Copy
if (args.FunctionName.XFEqualsIgnoreCase("GetUserCultureCurrency"))
{
UserInfo userInfo = EngineUsers.GetUser(si);
CultureInfo culture = new CultureInfo(userInfo.UserPreferences.Culture);
return culture.NumberFormat.CurrencySymbol;
}

XFBR can be changed for culture. To get another user culture, replace GetUser(si) with GetUser(si, "nameOfUser").

Node Link Weight Tooltip Format

Specify the tooltip formating.

Example: 0.00; #.##; #,###,###.00; 000.#'string'

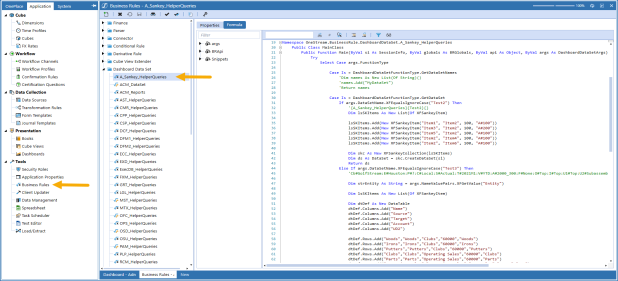

Business Rules and Sankey Diagrams

When using a method command type business rule, in addition to defining the Sankey items, at least four columns must be defined from the data table: Name, Source, Target, and Value.

NOTE: Negative values are not recognized by Sankey diagrams. Links between items will not flow when a negative value is present.
