Appendix: Configure Web API for Asymmetric Authentication

Government customers can use OneStream IdentityServer (OIS) for authentication with Private Key JSON Web Token (JWT) assertion to call a REST API endpoint as an alternative to a personal access token (PAT) for authentication. Private Key JWT assertion uses a private key instead of a client secret, so it does not require a password to be stored locally.

Set Up Authentication

1. Create an RSA key pair, which includes a public key file and a private key file.

   NOTE: It is recommended to use a certificate authority (CA) certificate generated by a third party instead of a self-signed certificate.

   Example: Self-signed certificate: openssl req -x509 -newkey rsa:4096 -keyout privkey.pem -out pubkey.pem -sha256 -days 365`

2. Submit a Support ticket to request a new client application registration be added to your OIS instance. Add the public key file (pubkey.pem) generated in step 1 as an attachment.

   OneStream will send you a client ID and scope to include in the call to retrieve a JWT.

3. To retrieve a JWT from a console application, use the following table. Add the items from the Constant column and their values based on the guidance in the Set Value To column.

TIP: The site name used in the OIS_ENDPOINT is in the Server Address used to connect to the Windows Application or Excel Add-In Clients.

NOTE: If you are unsure which OIS_ENDPOINT, CLIENT_ID, or DESIRED_SCOPE to use, contact OneStream Support.

This is a sample code in C# using a console application to retrieve a JWT:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
internal class Program
{
    private const string OIS_ENDPOINT = "https://localhost:44387/.well-known/openid-configuration";
    private const string CLIENT_ID = "clientcred.testapp";
    private const string DESIRED_SCOPE = "onestream.noninteractive.all";
    private const string KEY_FILE_LOCATION = "C:\\mycerts\\privkey.pem";
    private const string KEY_PASSWORD = "pass";

    private static async Task Main(string[] args)
    {
        var rsaKey = System.Security.Cryptography.RSA.Create();
        // this is an encrypted private key
        rsaKey.ImportFromEncryptedPem(System.IO.File.ReadAllText(KEY_FILE_LOCATION), KEY_PASSWORD);
        // if your private key doesn't start with ' --- BEGIN ENCRYPTED PRIVATE KEY ---', use ImportFromPem instead
        //rsaKey.ImportFromPem(System.IO.File.ReadAllText(KEY_FILE_LOCATION));

        var securityKey = new RsaSecurityKey(rsaKey);
        var jwk = JsonWebKeyConverter.ConvertFromRSASecurityKey(securityKey);

        var response = await RequestTokenAsync(new SigningCredentials(jwk, "RS256"));
        Console.WriteLine("Got token: {0}", response.AccessToken);
        Console.WriteLine("Expires in: {0}", response.ExpiresIn);
        Console.WriteLine("Token type: {0}", response.TokenType);
        Console.WriteLine("Scope: {0}", response.Scope);
    }

    private static async Task<TokenResponse> RequestTokenAsync(SigningCredentials signingCredentials)
    {
        var client = new HttpClient();

        var disco = await client.GetDiscoveryDocumentAsync(OIS_ENDPOINT);
        if (disco.IsError) throw new Exception(disco.Error);

        var clientToken = CreateClientToken(signingCredentials, CLIENT_ID, disco.TokenEndpoint ?? throw new InvalidOperationException());
        var response = await client.RequestClientCredentialsTokenAsync(new ClientCredentialsTokenRequest
        {
            Address = disco.TokenEndpoint,
            ClientId = CLIENT_ID,
            GrantType = OidcConstants.GrantTypes.ClientCredentials,
            // this should be explicitly added as the default is via header, which we don't want with a client assertion
            ClientCredentialStyle = ClientCredentialStyle.PostBody,
            ClientAssertion =
                {
                    Type = OidcConstants.ClientAssertionTypes.JwtBearer,
                    Value = clientToken
                },
            Scope = DESIRED_SCOPE
        });

        if (response.IsError) throw new Exception(response.Error);
        return response;
    }

    private static string CreateClientToken(SigningCredentials credential, string clientId, string audience)
    {
        var now = DateTime.UtcNow;

        var token = new JwtSecurityToken(
            clientId,
            audience,
            [
                    new(JwtClaimTypes.JwtId, Guid.NewGuid().ToString()),
                    new(JwtClaimTypes.Subject, clientId),
                    new(JwtClaimTypes.IssuedAt, now.ToEpochTime().ToString(), ClaimValueTypes.Integer64)
            ],
            now,
            now.AddMinutes(1),
            credential
        );

        var tokenHandler = new JwtSecurityTokenHandler();
        return tokenHandler.WriteToken(token);
    }
}

Call a Rest API Endpoint with a JSON Web Token

Use the JWT to call a REST API endpoint. See this Postman example:

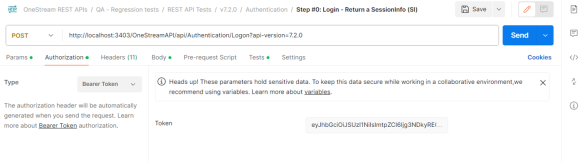

1. In the Authorization tab, replace Token with the JWT.

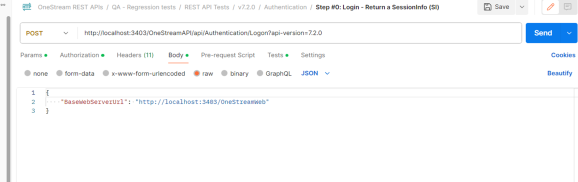

2. In the Body tab, add the BaseWebServerUrl.

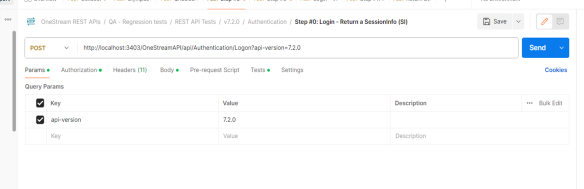

3. In the Params tab, add Key api-version and the version for Value (for example, 7.2.0).

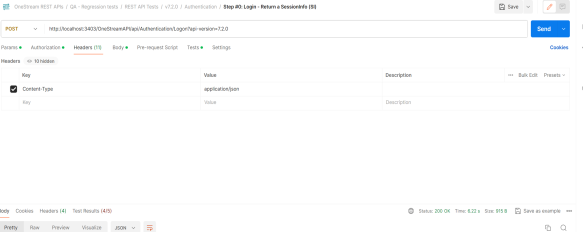

4. In the Headers tab, add Key Content-Type and Value application/json.

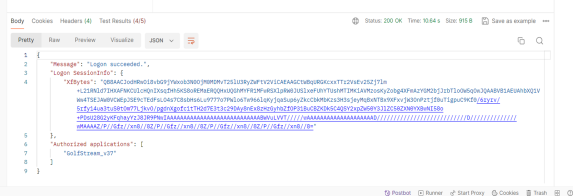

5. View the sample response.
