Appendix: Setting Up Encrypted Database Connections

  1. Launch the OneStream Database Configuration utility.

  2. Right-click a database and select Copy to Clipboard > Connection String.

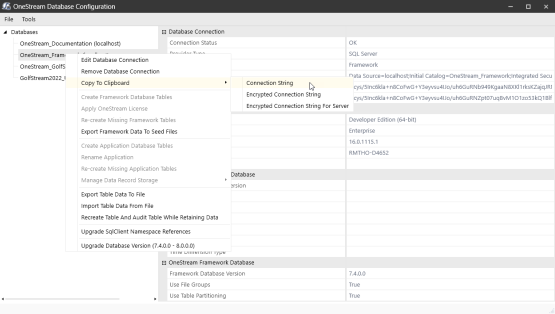

    Database Connections drop down menu with Copy to Clipboard and Connection String highlighted

  1. Copy the encrypted string.

  2. Email Connection String:

    Example: SmtpHost=[smtp.office365.com], SmtpPort=[587],
    EnableSSL=[True], SmtpSourceMailAccount=[userID@youremaildomain.com],
    SmtpSourceMailAccountPassword=[password    ]

    Email Connection String with From Address (optional):

    Example: SmtpHost=[smtp.office365.com], SmtpPort=[587],
    EnableSSL=[True], SmtpSourceMailAccount=[username], SmtpSourceMailAccountPassword=[password],
    FromAddress=[userID@youremaildomain.com]

    SAP Connection String:

    Example: "USER=YourUserID LANG=EN CLIENT=800 SYSNR=00 ASHOST=HostServerName PASSWD=YourPassword"

  3. The encrypted string is stored to the clipboard.

    Encrypted Email String:

    Example: XScpcDzo3an7EWAAp6Wvz1IZWE3Q+Fo8DSx0OpacS0Yp5X4sHXtiQGdAoNmNGU48xOa
    3xD3C68yAl7B8aXUbv02lj4921ErgN2R+E1qlLG24p98O8a62X0n/q4PS70xzo
    sL7R9HzKWT0txtfbpJMUPYrIhCDz6Ubd52/buVABQyUxf2c0Y1BmgIKE/
    /6eOcMCv0D5abX6oKbEmZLlms7vXyuicD+KaYheBNX/vbtkA4=

    Encrypted SAP String:

    Example: MF/HrDU0zQupeiyGGSUZ431S1guSfOCDoss4T7JYmiNm8BPTw7inI97W5en

    ORZfrVN1Z8ADUHkavsRXKnomFKqBLmddbamOIt5s9bO3jxfXiLI

    9B26SDQDKwJer1e6Jc

  4. Open the OneStream Application Server Configuration tool.

  5. Open Database Server Collections.

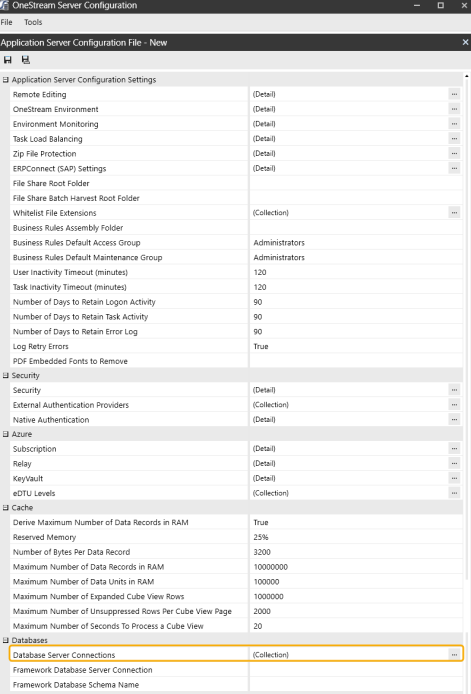

    Database Server Connections field highlighted

  6. Add a database connection.

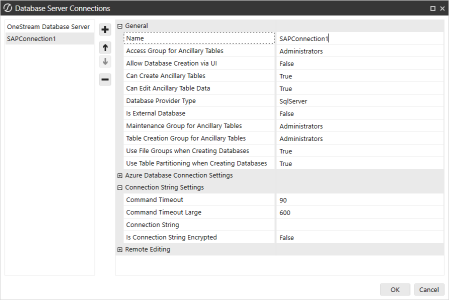

    Database Server Connections dialog box

  7. (Email Connection Only) In the OneStream Business Rule using the email connection, add the code to call the mail function:

    Copy

    VB.Net

    'Prepare the message
    Dim emailConnectionName As String = "OneStreamEmail"
    Dim toEmail As New List(Of String)
    toEmail.Add("username@OneStreamSoftware.com")
    Dim subject As String = "Test Mail"
    Dim body As String = "Test Mail Body"
    Dim attachments As New List(Of String)
    attachments.Add("\\share1\FileShare\Applications\GolfStream_v30\TestFile.csv")

    'Send the message
    BRApi.Utilities.SendMail(si, emailConnectionName, toEmail, subject, body, attachments)

  8. (SAP Connection Only) In the OneStream Business Rule using the SAP connection add the code to call the mail function:

    Copy

    VB.Net

    Dim myR3Connection = BRApi.Database.CreateSAPConnection(si, sapConnectionName, openConnection)

    • si: SessionInfo

    • sapConnectionName: The name of the connection setup in the DB configuration

    • openConnection: Boolean value stating whether or not to keep the connection open.
