Styles

On the Styles page, you can customize the display and spacing of the navigation bar and page bar in the end-user view of the Genesis instance.

The Styles page is organized in the following sections:

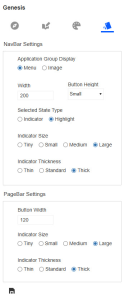

  • In the left panel, you can view and configure style settings and apply them to the navigation bar and page bar.

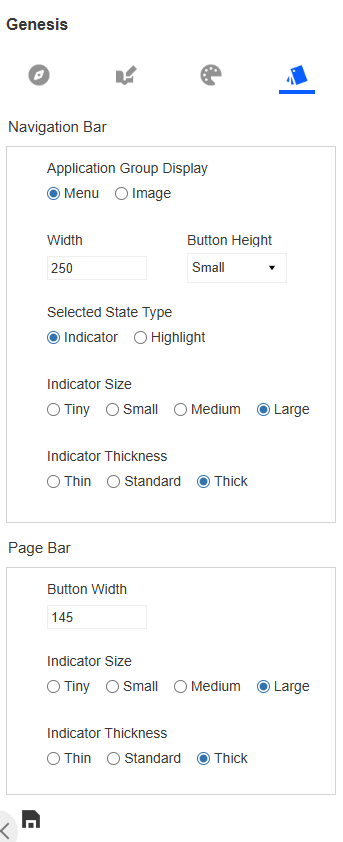

    The left panel features the Genesis Designer toolbar, navigation bar settings for Application Group, button, and indicator, and page bar settings for button and indicator.

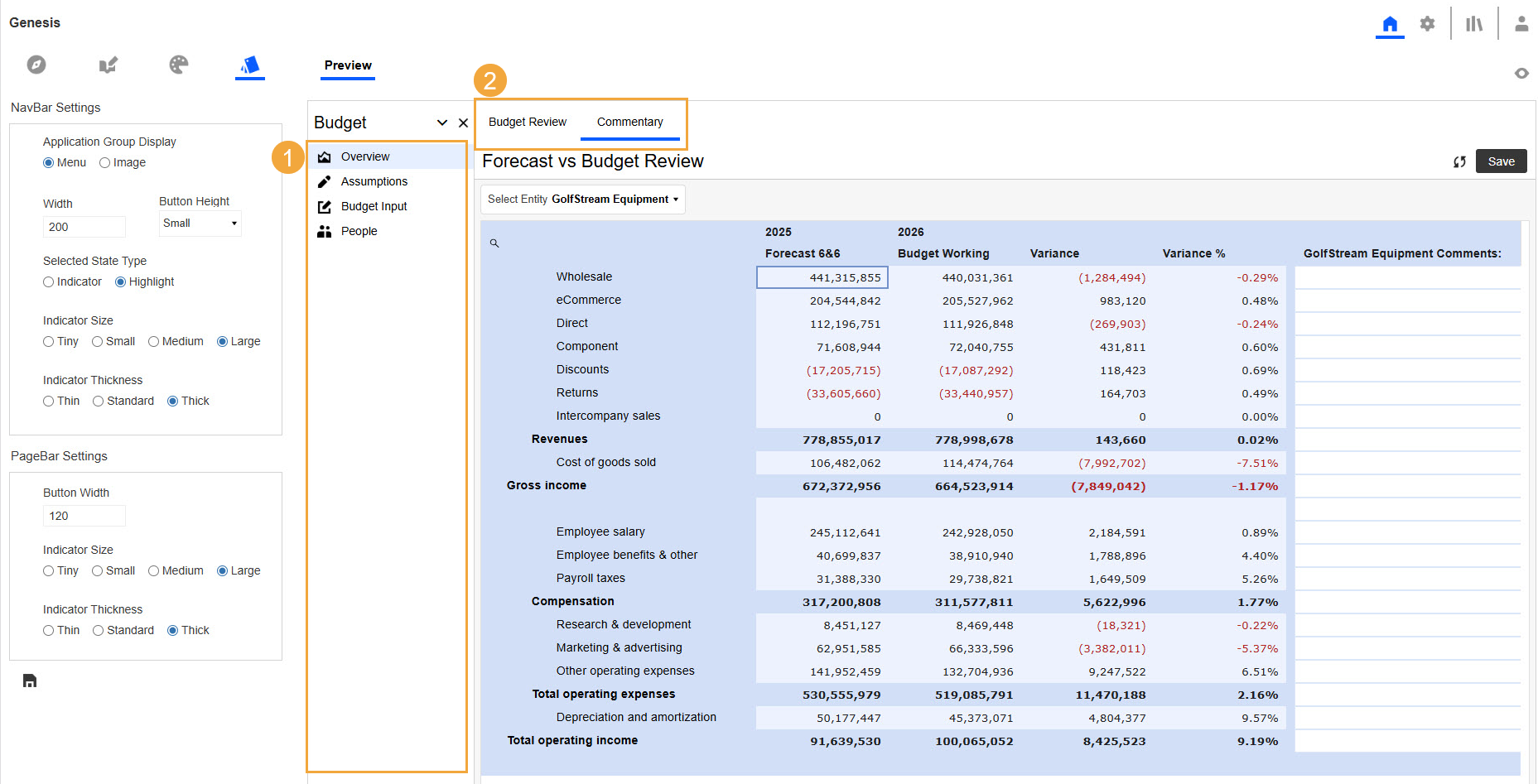

  • Preview: This tab displays a preview of the end-user view with the selected style settings applied to the navigation bar and page bar.

    In the upper right, you can set your preference to turn the preview on (click the Show Preview Show Preview icon is an eye with a slash. icon) or off (click the Hide Preview Hide Preview icon is an eye. icon).

    1. Navigation bar is a vertical column below the home box that displays the Navigation Groups in the selected Application Group. 2. Page bar is a horizontal row to the right of the home box that displays the Pages in the selected Navigation Group.

    1. Navigation bar is displayed on the left side of the page.

    2. Page bar is displayed across the top of the page.

Configure Style Settings

Configure style settings before applying them to a Genesis instance.

Navigation Bar

These settings customize the display of the Application Groups and Navigation Groups in the navigation bar.

Application Group Display

  • Menu: Select to display the Application Group description in the navigation bar drop-down menu.

    Application Group drop-down menu with Home selected and the text displayed.

  • Image: Select to display a menu image for the Application Group in the navigation bar drop-down menu. Use this option to reduce the size of the navigation bar.

    Application Group drop-down menu with Home selected and the icon of three horizontal lines displayed.

Width: Enter the number of pixels to set the width of the navigation bar.

Button Height: Select the height of the space for each item in the navigation bar.

TIP: Increase the navigation bar width or button height to accommodate longer names or larger font sizes.

Selected State Type

  • Indicator: Select to include a vertical indicator bar next to the selected item in the navigation bar.

    Selected item in the navigation bar has a vertical line to the left

  • Highlight: Select to highlight the background of the selected item in the navigation bar.

    Selected item in the navigation bar has the background highlighted

NOTE: The color listed in NavBarButtonIndicatorBackground on the Colors page is used for the vertical indicator bar or highlight. See Color Set Properties.

Indicator Size: If you selected Indicator as the Selected State Type, choose a length for the vertical bar: Tiny, Small, Medium, or Large.

Indicator Thickness: If you selected Indicator as the Selected State Type, choose a thickness for the vertical bar: Thin, Standard, or Thick.

Page Bar

These settings customize the display of the Pages in the page bar.

Button Width: Enter the number of pixels to set the width of the page bar tabs.

TIP: Increase the button width to accommodate longer page names.

Indicator Size: Select a length for the horizontal bar displayed under the selected page bar tab: Tiny, Small, Medium, or Large.

Indicator Thickness: Select a thickness for the horizontal bar displayed under the page bar tab: Thin, Standard, or Thick.

Apply Style Settings

After you configure style settings, apply them to a Genesis instance.

  1. In the left panel, select the style settings. See Configure Style Settings.

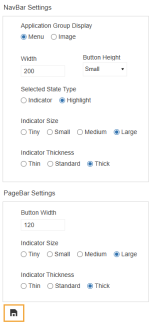

  2. Click the Save your changes. icon to apply the style and view the updates in the Preview tab.

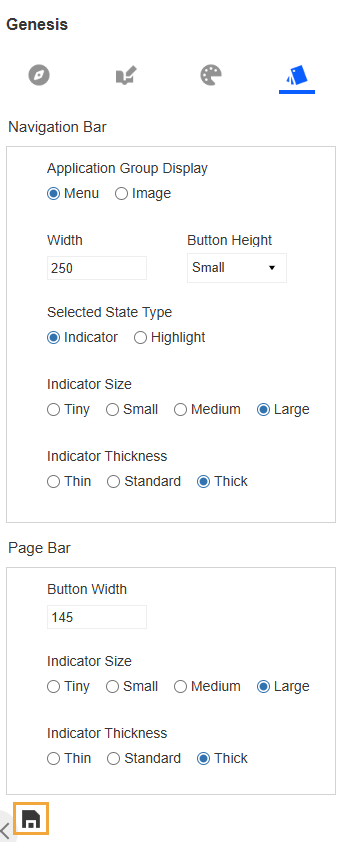

    The left panel features the Genesis Designer toolbar, navigation bar settings for Application Group, button, and indicator, and page bar settings for button and indicator. The Save your changes icon is a floppy disk.
